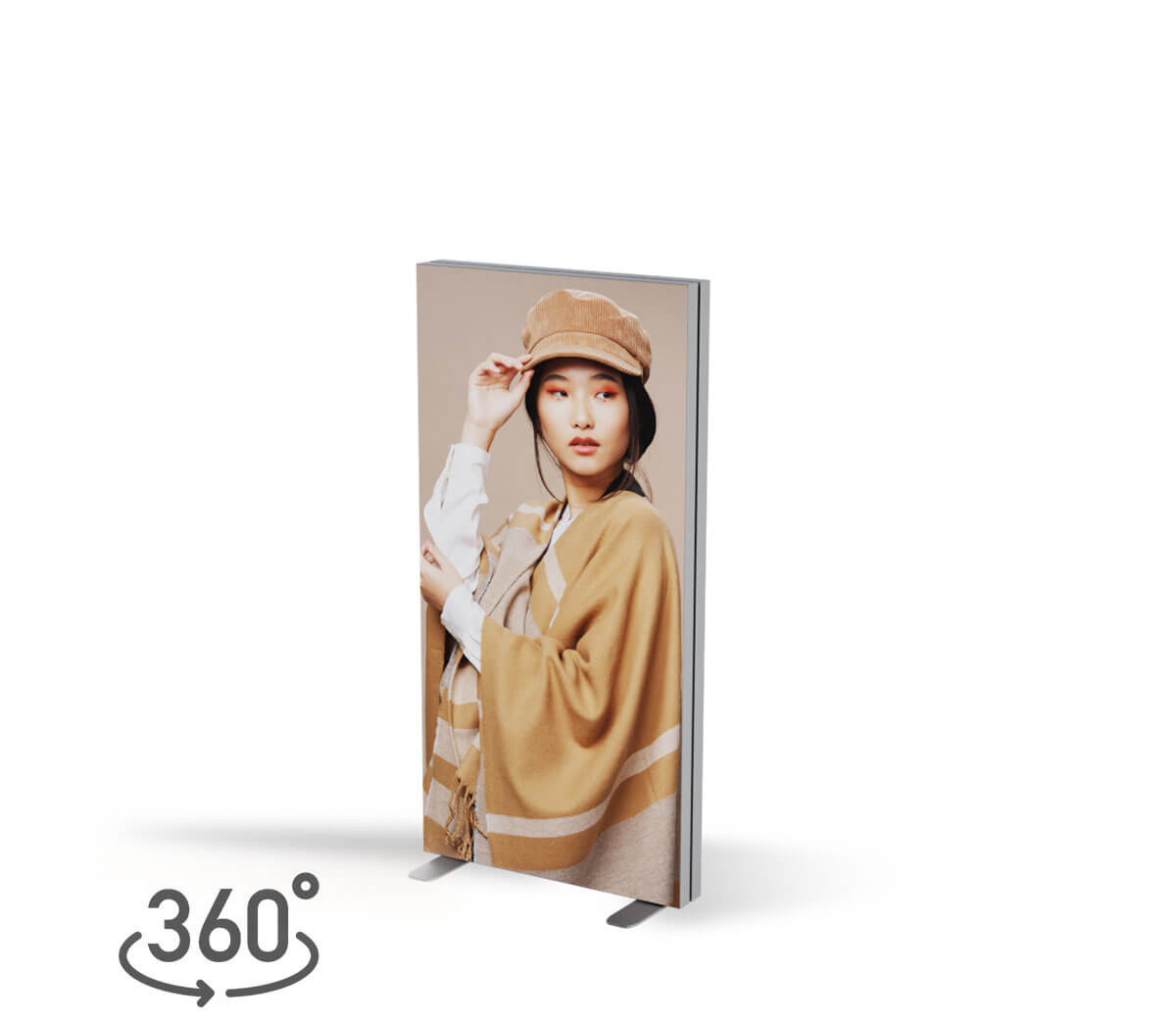

ZEN Double – non-illuminated, double-sided aluminium frame

ZEN Double – 100 × 200 cm is a modern system for textile displays without lighting. The 6 cm profile provides rigidity and a clean edge, ready for ceiling suspension, use as a partition or a hanging wall. SEG allows lightning-fast, tool-free fabric changes.

Key benefits

• Double-sided display without LEDs – light and visually clean

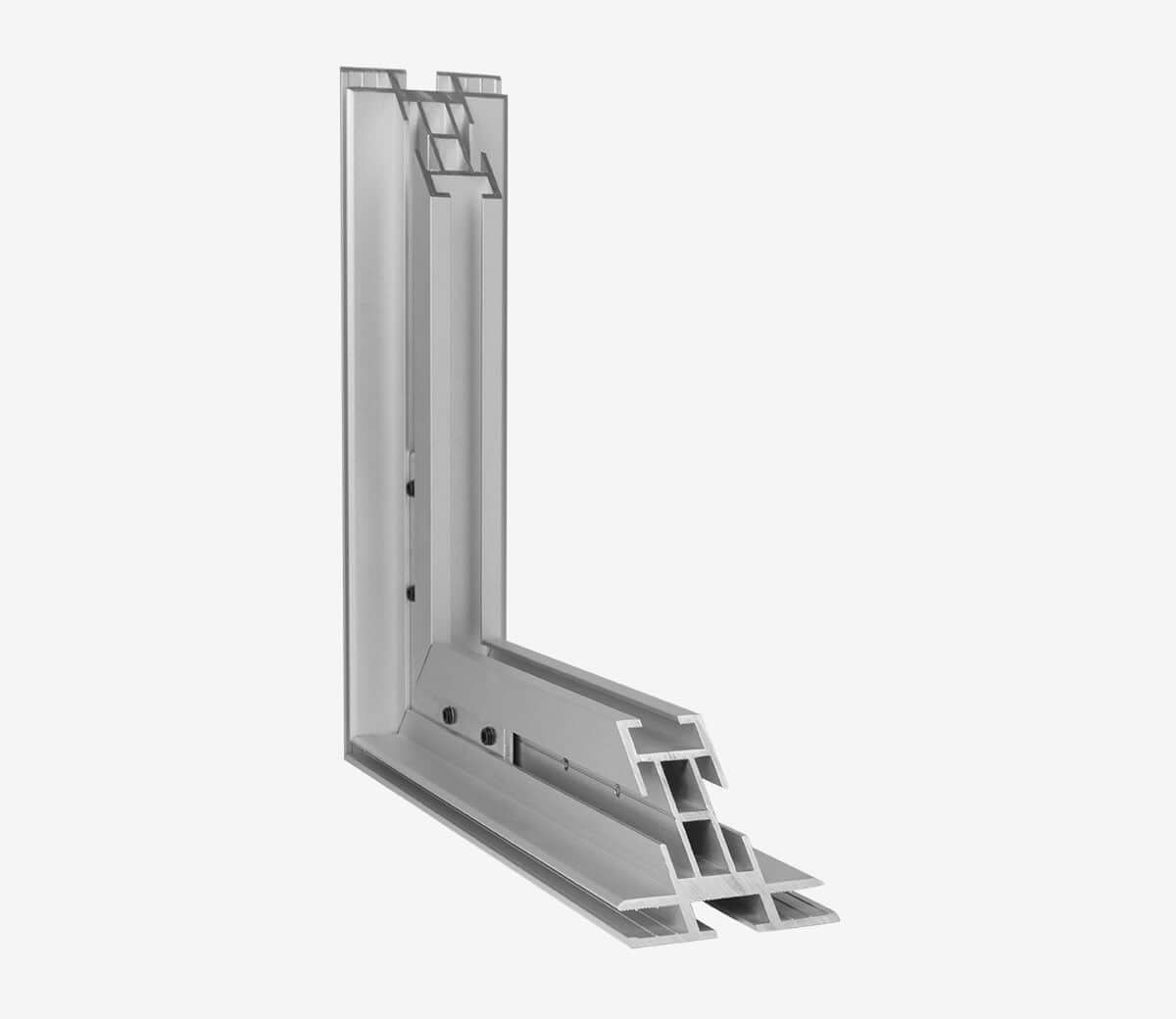

• 6 cm profile – solid, neat edge
• Quick SEG exchange (14 × 3 mm)
• Reusable construction – economical content updates
• Versatile uses: hanging, partition, suspended wall

Applications

• Hanging visual communication elements
• Partitions and suspended dividers in showrooms and retail
• Zoning at fairs and in offices

SEG technology – perfectly tensioned fabric

Textile graphics with a 14 × 3 mm silicone edge slide into the aluminium groove, creating a smooth, crease-free surface. Replacement is quick and tool-free.

• Materials: Polyester 210 g/m² or Blackback
• Precise fit and clean edges

ZEN systems – modular aluminium frames

From lightweight Basic to illuminated Backlight, ZEN offers a wide range of profiles and mounting styles. ZEN Double is the choice when you need a large, double-sided surface without LEDs.

Specification

• Frame size: 100 × 200 cm
• Depth: 6 cm
• Frame material: anodized aluminium
• Profile weight: 1.038 kg/m
• Frame weight: 12 kg
• Frame colour: silver anodized (RAL Classic – extra)
• Graphics: Polyester 210 g/m², Blackback
• Finishing: 14 × 3 mm silicone strip
• Construction: aluminium profile
• Set contents: profile, stabilising feet, connectors
